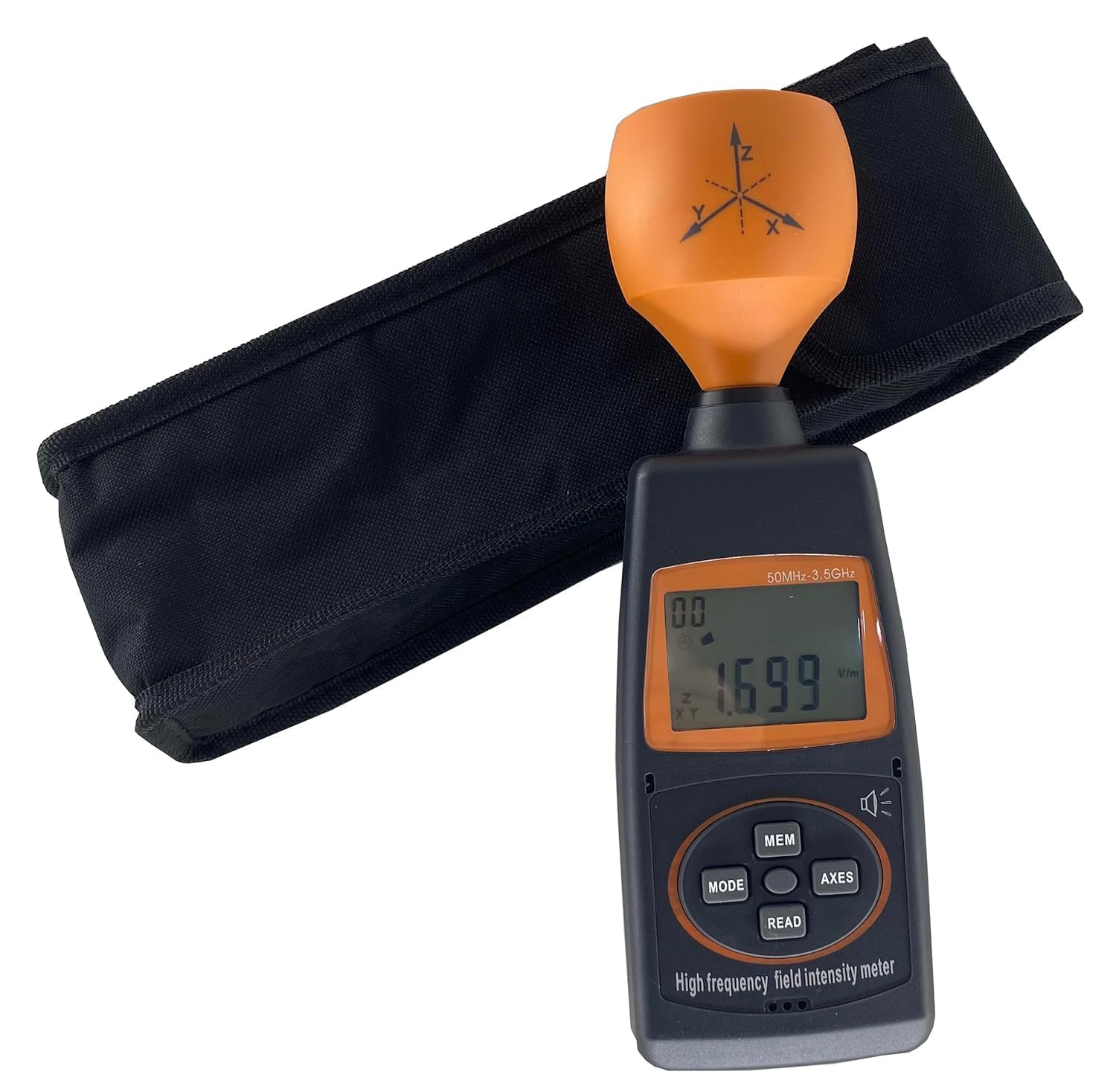

High Frequency Field Intensity Meter with Wide Range from 50MHz to 3.5GHz All-Aspect Three Axes Characteristic of Directivity 99 Groups Manual Memory and Reading Data Content

Introduction: The meter is using for detecting high frequency radiation from 50MHz to 3.5GHz,it has all-aspect electric field's test and high sensitivity.It can use for measuring the electric field strength and magnetic field strength of TEM cells and absorber rooms. The meter can display the instantaneous measurement value,the MAX measurement value and average measurement value.The instantaneous measurement value can use for directional measurement,for example:when you go to the exposed zone first. Features: The meter is designed to detect high frequency radiation with wide range from 50MHz to 3.5GHz. It measures electromagnetic field strength omnidirectionally and has high sensitivity. Can display the instantaneous value, the max value and the average value of measurement. Max, average measurement function and alarm set-up function. Can be applied to supervise radiation of electromagnetic fields in your region such as radiation of broadcasting. Specification: Metrical ways: digital display, measuring with three axes Characteristic of directivity: all-aspect, three axes Resolutin displayed: 0.1mV/m,0.1uA/m,0.1uW/M2 Reaction time: about 1 second(the measurement value is from 0 to 90%) Refresh rate displayed: about 0.5 second Display format: LCD, 4 digits Alarm: buzzer Units: mV/m,V/m,uA/m,mA/m,uW/m2，mW/m2,uW/cm2 Displayed value: the instantaneous measurement value,the MAX measurement value,average measurement value and the maximum averaging value Warning function: you can adjust the setting value and you also can open the function or close it. Manual memory and reading data content: 99 groups Power: 4×1.5V AA battery (not included) Operating Temperature: 0-50℃（32-122°F） Relative humidity: ≤80%RH Dimensions : 261L×73W×38H(mm)

• The meter is designed to detect high frequency radiation with wide range from 50MHz to 3.5GHz.
• It measures electromagnetic field strength omnidirectionally and has high sensitivity.
• Can display the instantaneous value, the max value and the average value of measurement.
• Max, average measurement function and alarm set-up function.
• Can be applied to supervise radiation of electromagnetic fields in your region such as radiation of broadcasting.
